Shipboard articulated crane

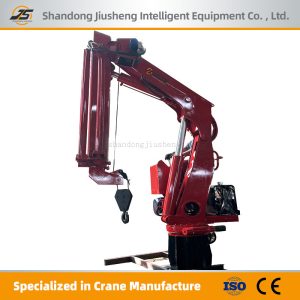

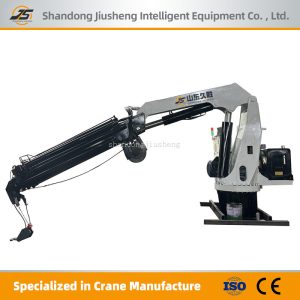

A shipboard articulated crane is a lifting device mounted on the deck or superstructure of a vessel. The crane features a boom with one or more hinged joints, allowing the arm to bend and fold into a compact position when not in operation. This folding design helps reduce the crane’s storage footprint and lowers its profile, which can be useful for navigation under bridges, inside dry docks, or when stacking deck cargo.

Shipboard articulated crane–Description

A shipboard articulated crane is a lifting device mounted on the deck or superstructure of a vessel.The crane features a boom with one or more hinged joints,allowing the arm to bend and fold into a compact position when not in operation.This folding design helps reduce the crane’s storage footprint and lowers its profile,which can be useful for navigation under bridges,inside dry docks,or when stacking deck cargo.

The crane is typically powered by a hydraulic system supplied from the ship’s auxiliary power or a dedicated power pack.Hydraulic cylinders control the articulation points,enabling lifting,lowering,slewing,and positioning of loads.Construction often includes marine‑grade materials and coatings,such as galvanised steel,stainless steel components,or corrosion‑resistant paint,to withstand saltwater exposure and humid conditions.

Common tasks for a shipboard articulated crane include transferring stores,equipment,or spare parts from quayside to deck,handling fishing gear,moving cargo within the vessel,or supporting maintenance activities.Some units may be fitted with a winch,grab,or other attachments.Lifting capacity varies with the working radius and boom angle–a shorter reach typically permits heavier loads,while extending the boom reduces the safe working load.

Operators should consult the manufacturer’s load chart before each lift.Regular inspection of hydraulic hoses,pivot pins,mounting bolts,and corrosion protection layers is recommended to help maintain safe operation in the marine environment.The crane’s foundation must be securely fastened to the ship’s structure as specified by the manufacturer.No single configuration meets all vessel types or load requirements,and selection should be based on intended duties and available deck space.
